  • Rotor lobe Pump
  • Rotor lobe Pump
  • Rotor lobe Pump
  • Rotor lobe Pump
  • Rotor Lobe Pump

    Model :TR-I-45

    Volume of rotor:0.05L

    Range of speed:200-600rpm

    Suggestion speed:200-400rpm

    Related flow:540-1080L/hr

    power:0.75kw

  • We are here to help:Easy ways to get the answers you need.

    Get Price

Description

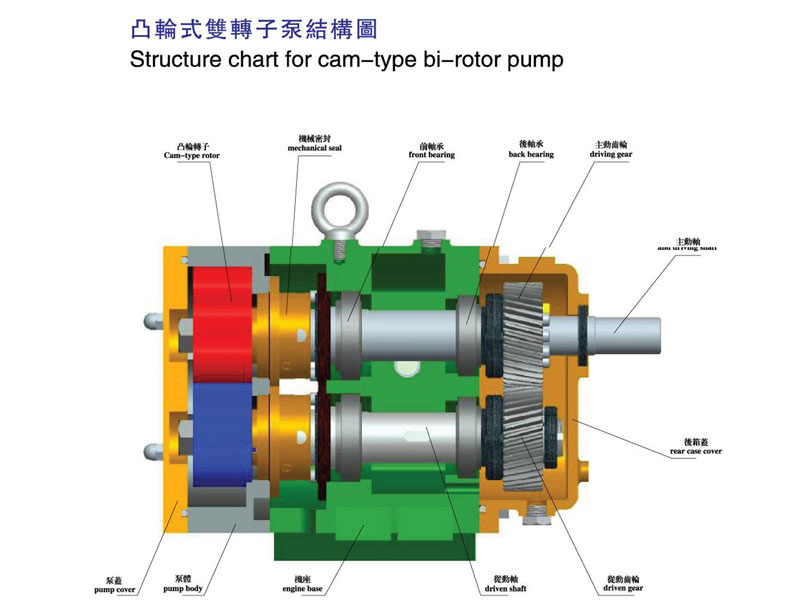

Rotor lobe pump is a positive displacement pump, is suitable to transfer high viscosity material continously (eg peanut butter), it contains rotor case, rotor case cover, rotors, rotor nuts, shafts, gearbox and shaft seals. Rotary lobe pump's working principle is: depending on two rotors running in the opposite directions to leave some space inside of the cavity, meanwhile movement of two counter rotating rotors occur a certain vacuum that allows air pressure to force the peanut butter into the chamber, under the continuous movement of two rotors, thus realize peanut butter transferred.

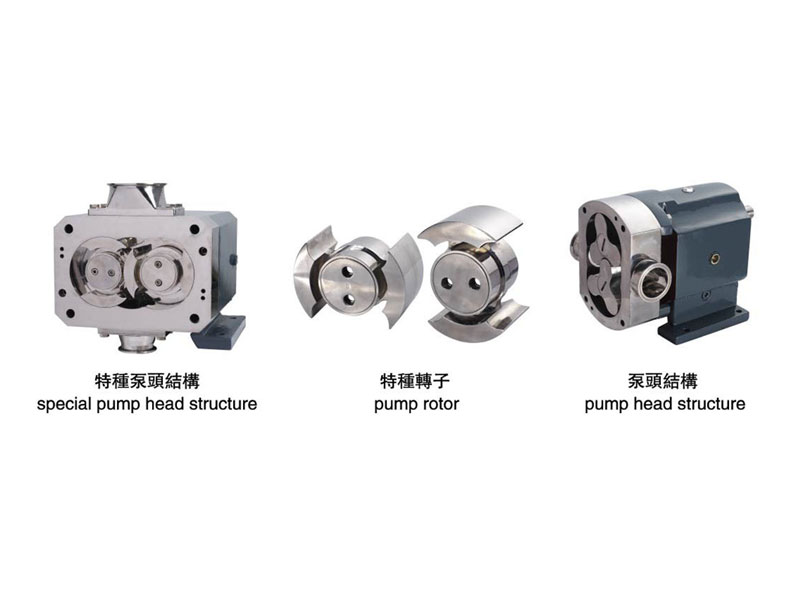

Details of rotary lobe pump
SS 316 L or SS 304
Mechanical seal
Application
Food industry: milk, beer, chocolate, syrup
Daily use chemicals: cosmetics, fragrance, toothpaste, detergents, shampoo, shoe polish, soaps, face cream
Pharmaceuticals industry: emulsifiers, syrup, medicines, paste, pharmaceuticals, bio products
Chemical industry: paint, dyes, oil agents, emulsified asphalt, adhesives, leather goods
Features
High efficiency
High hygienic standard
Easy to use
Low maintenance
Technical data
No Model Volume of rotor(L) Range of speed(rpm) Suggestion speed(rpm) Related flow (L/hr) power Suction and discharge(mm)
1 TR-I-45 0.05 200-600 200-400 540-1080 0.75 15
2 TR-I-52 0.09 200-600 200-400 970-1940 1.5 15
3 TR-I-70 0.17 200-600 200-400 1800-3600 2.2 30
4 TR-I-78 0.31 200-600 200-400 3300-6600 4 40
5 TR-I-88 0.50 200-600 200-400 5400-10800 5.5 50
6 TR-I-97 0.65 200-600 200-400 7000-14000 7.5 65
7 TR-I-110 1.05 100-500 200-400 5670-22680 11 80
8 TR-I-135 1.74 100-500 200-400 9400-37600 15 80
