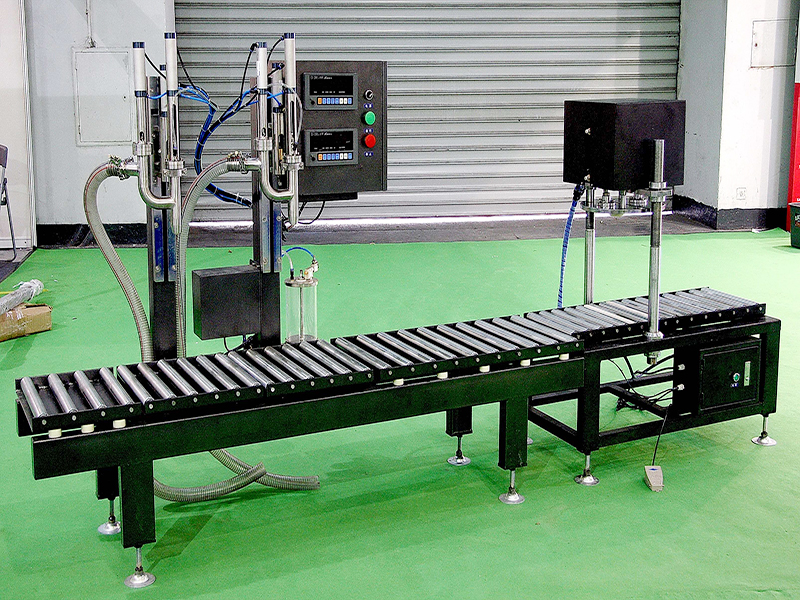

    Model:Semiautomatic Filling & Capping Machine

    Container Specification:5L-30L open mouth drum

    Weigh Capacity:5-30 kg

    Filling Speed:3-5 barrels/min

    Allow Error:±0.2%

  • We are here to help:Easy ways to get the answers you need.

    Get Price

Description
Semiautomatic Filling & Capping Machine is mainly used for viscous texture material’s dosage filling &capping, especially apply to food, such as peanut butter, sunflower seed butter, sesame paste and so on.

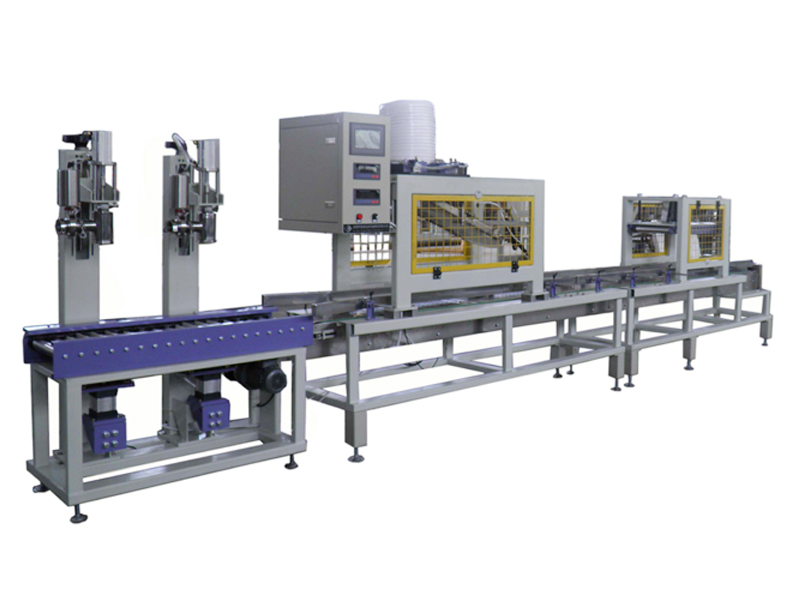

Semiautomatic Filling & Capping Machine is composed of auto double-head filling line, auto electrical/pneumatic controller, auto capping subassembly, auto out drum conveyor, frame and so on. It need operator stand by and put the lid on top of pails.

Application
Industry liquid chemical, petrochemical, food, pharmaceutical, cosmetic, jam, soy sauce, condensed milk, paint, ink, paint, glue, adhesives, resins, paraffin quantitative packaging.

Technical data
Model Semiautomatic Filling & Capping Machine
Container Specification 5L-30L open mouth drum
Weigh Capacity 5-30 kg
Filling Speed 3-5 barrels/min
Allow Error ± 0.2%
Voltage AC208V 50Hz± 2Hz
Air Consumption 0.4-0.6m2/min
Air Pressure 0.4-0.6MPa
Power 0.2kw
Work Temperature 0℃~40℃
